Real-world Face Mask Detection Part2; A Practical Solution

real time Face Mask Detection part 2 | Galliot

image source freepik.com

In this article, we will walk through the steps for building a face-mask detector to detect faces in real-world CCTV videos captured in crowded areas.

Published date: 10-03-2020

This is the second part of a two-part series on real-world face mask detection by Galliot.
Find the first part of this article here to read about the Mask Detection problem statement.
Go to Galliot’s Face Mask Detector source code for implementation details.
Visit the Data Labeling Methodology, Approaches, and Challenges article to know more about building high-quality data for your AI applications.

As a response to COVID-19, we have designed and developed an open-source application, sponsored by Lanthorn.ai, that can detect if people are wearing a face mask or not. This application works well even in videos captured from crowded areas. Our system can detect face masks in real-world CCTV camera videos, where faces are blurry, low-resolution, and only occupy a small portion of the video frame.

To the best of our knowledge, our work outperforms previous works on face mask detection in CCTV video streams. We have open-sourced Galliot’s datasets and models to facilitate continued work in this space. You can learn more about the datasets and models by reading the first part of this article.

In the first part of this article, we explained how to build a face mask classifier that can work in real-world video streams to classify masked faces from unmasked ones. In this part, we will walk through the steps required to build a face detector to detect faces in real-world CCTV videos captured in crowded areas. We will also explain how to deploy Galliot’s Face Mask Detector on edge devices and give examples of the source code configuration options.

If you plan to build a face detector, you can keep reading this article even if you have not read part 1. However, we recommend you read part 1 first to better understand the basic concepts and the goal of this application.

1. Overview of the Mask Detection Problem

We discussed the problem in detail in part 1. Here is a quick recap:
We wanted to design a system that could detect faces and classify masked faces from unmasked ones. We divided our face mask detection system into two sub-modules: 1- the face detector and 2- the face mask classifier. Part 1 covers the face mask classifier sub-module in detail. In this part, we will expound on the face detector.

Before designing and building the detector model, we need to know the characteristics of the data we are going to deal with.
There are several face mask detectors out there that fail to generalize to real-world data. By real-world data, we mean videos recorded by cameras placed far from the objects of interest, such as CCTV camera videos. Capturing the features of objects is challenging in these videos, compared to high-resolution webcam videos where objects of interest are positioned close to the camera. Our goal is to detect faces and classify masked faces from unmasked ones in real-world data, like the videos captured by CCTV cameras, where faces are small, blurry, and low-resolution.

2. Face Detection in Real-World Data; An Evolutionary Path

We tried several face detector models to find the one that matched our use case. This section will explain some of these detector models and describe each one’s characteristics.

2.1. Model #1: SSD MobileNet

When dealing with an object detection problem, the most popular networks to use are R-CNN family models, YOLO family models, and SSD models. We decided to start with a MobileNet SSD model for its high speed and ease of deployment on mobile devices.

We trained an SSD-MobileNet-V1 model on WIDER FACE, a face detection benchmark dataset, to build our first face detector model. The model performed well on its validation set; however, when we tested the model on real-world CCTV data, it failed to detect small faces (see Figure 1).

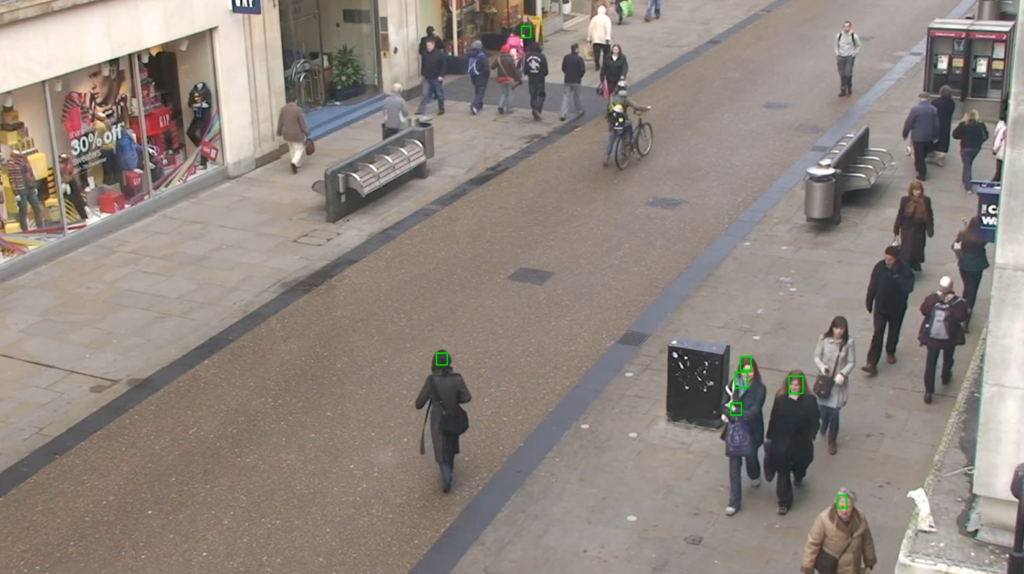

SSD MobileNet fails to detect small faces | Galliot Face Mask Detection
Figure 1. SSD MobileNet fails to detect small faces.

Why does SSD fail to detect small objects?

Let us first discuss the performance of some state-of-the-art object detection models on small-sized images:

Anchor-based object detection models struggle with object detection in images with small objects.
Figure 2. Some object detection architectures with different feature extractors were tested on large, medium, and small object sizes with a fixed resolution. It can be observed that all the methods do much better on larger images (source).

As you can see in Figure 2, all the mentioned object detection architectures struggle with detecting objects in small sizes, and the models do much better when trying to detect large objects. It can be inferred that conventional object detection approaches fail to detect small objects.

Applying SSD is not an excellent approach to face detection where faces are relatively small, and this is a structural problem in SSD (and other anchor-based) methods. There are several reasons why SSD misses the small faces. We will mention two of them; you can follow other reasons in this paper.

Few features
Larger objects include more pixels; therefore, more features can be extracted from them. In other words, the model can learn more attributes when dealing with larger objects that contain more pixels with various information about each pixel’s color, texture, and shape. However, few features are learned by the network when working with small objects, and most of these learned features are faded and destroyed in the last layers, especially in deep networks with several layers.

Anchor-based approaches, like SSD, propose several anchors with fixed aspect ratios and scales to do the object detection task. However, the anchor scales are too large to fit the small faces. Therefore, anchor-based approaches fail to detect small objects, in our case, small faces.

We learned that SSD methods are not suitable for detecting small objects. In our next attempt, we pursued a completely different approach to detecting faces; we used a pose estimation model.

2.2. Model #2: Pose Estimation

We explained that small faces have few features to be learned. A richer context was needed to solve the problem of detecting small faces. We tried to look at the problem from a different angle and finally decided to use pose estimation.

Pose estimation algorithms extract rich information about the human body parts. These algorithms predict the location of key body joints, such as elbows, shoulders, and knees, known as the key points, as shown in Figure 3. Pose estimation algorithms leverage much more context about the whole human body instead of focusing on learning features about the face only. By knowing these key points, we can easily estimate the face bounding box coordinates. For example, the face bounding box width can be approximated as one-third of the shoulder width.

OpenPifPaf pose estimator sample output
Figure 3. OpenPifPaf pose estimator sample output (source). Notice the key points specified in different colors.

We tried different pose estimation models to predict the body key points, including OpenPose, AlphaPose, and OpenPifPaf. OpenPifPaf is specially designed for pose estimation in videos where bodies may be partially occluded, and bodies are small. It also gave the best performance results on real-world CCTV data, among other pose estimators. Thus, we continued working with this model. Figure 4 shows an example of face bounding boxes calculated using the body key points predicted by the OpenPifPaf pose estimator.

We can estimate face bounding boxes using OpenPifPaf pose estimator keypoints.
Figure 4. Example of face bounding boxes calculated using the OpenPifPaf key points.

OpenPifPaf works pretty well on videos where people are far from the camera, and the faces are small. However, there were some cases where the pose estimation method missed some faces, regardless of the model we used.

Pose estimation models can predict key points where the whole body, or at least most of it, is visible in the input image or video. However, in some overcrowded areas, most of the pedestrians are occluded by each other. Hence, the bodies are not visible to the pose estimator, and key points cannot be extracted to further be used by our bounding box calculator algorithm to predict the face bounding boxes.

Figure 5 shows how the pose estimator method works in an overcrowded place. As you can see, the model missed most of the faces. We cannot blame the model for not making face bounding box suggestions, though, as the bodies are not visible to the pose estimator to predict the body poses in the first place.

OpenPifPaf pose estimator poor performance in overcrowded scenes.
Figure 5. The pose estimator model fails to predict the body poses in overcrowded areas where the pedestrians occlude each other.

Based on what we just saw, we cannot conclude that pose estimation methods are not applicable to face detection in real-world, CCTV-like data. In fact, pose estimation methods can produce accurate results in some cases, like what we saw in Figure 4

In the next approach, we will explain our last solution and compare it to our pose estimation method to learn which model we should use in different scenarios.

2.3. Model #3: Tiny Face Detector

The challenge of detecting small faces in overcrowded areas remained unsolved in the previous approach. In this paper, different aspects of this problem are studied, and a novel approach is proposed to train separate detectors for different scales while preserving efficiency. The open-source code for the Tiny face detector is available on GitHub.

Galliot | Tiny face detector can detect small faces in overcrowded scenes.
Figure 6. The proposed face detector can find around 800 faces out of the reportedly 1000 present. The color bar on the right determines the detector’s confidence.

We used the Tiny face detector model trained on WIDER FACE and tested this model on several videos. Unlike the previous approach, this method can detect small faces even in overcrowded areas where bodies are almost entirely occluded by each other. Compare the Figure below with Figure 5 to see the model performance in overcrowded areas.

Tiny face detector performance in overcrowded scenarios used for face detection | Galliot
Figure 7. Tiny face detector performance in overcrowded scenarios. Compare this output with Figure 5.

The Tiny Face detector also works well in other scenarios where a few people are passing by. See Figure 8 for an example.

Tiny face detector example on CCTV data | Galliot
Figure 8. Tiny face detector model performance on a CCTV video example.

In the last two examples, the Tiny face detector seems to outperform the pose estimation method. However, there are some cases where using the pose estimator is a better choice.

2.4. Identify the Scenario, Choose the Method

Although the Tiny face detector outperforms the pose estimator method in overcrowded scenarios, there are still some cases where the pose estimation method is preferred.

In real-time applications where speed is the priority, pose estimation is favored. We tested both methods on the same video on our GeForce RTX 2070 Super GPU. The inference time was 300 milliseconds per frame for the Tiny face detector, which was three times slower than the 100 milliseconds per frame inference speed using the pose estimation method.

Also, in low-resolution videos with partial occlusions, the Tiny face detector misses some faces that can be detected by the pose estimator.

To sum up, if you are dealing with low-resolution videos where bodies are only partially occluded, and inference speed is important, you would better choose the pose estimation method over the Tiny face detector. However, if you are working with medium to high-resolution videos in overcrowded places where bodies are occluded by each other and inference speed is not important, the Tiny face detector is a better choice.

Note: We will implement the Tiny face detector in our Face Mask Detector application in future updates.

We have learned a lot about building a face detector that works well on real-world data, and from the previous part, we know how to build a “mask/ no mask” classifier. All the necessary tools are ready, so let’s deploy Galliot’s Face Mask Detection application on our edge device.

3. Face Mask Detection on Edge

This section will explain the tools and modules we used to deploy Galliot’s Face Mask Detection application on Edge TPU and Jetson devices. Support is also available for X86 CPU and X86 GPU platforms.

As explained earlier, our application is composed of two sub-modules; 1- the face detector and 2- the “mask/ no mask” classifier. For more information about the connection between these modules, refer to the first part of this article. Next, we will explain the classifier and the detector we used to deploy Galliot’s Face Mask Detection application on each edge device.

3.1. Coral Edge TPU

Face Detector

Coral has introduced an SSD-MobileNet-V2 face detector for Edge TPU devices. However, since the detector is an SSD model, it failed to detect small faces in CCTV-like data (as we discussed earlier). Therefore, we used PoseNet, a pose estimator introduced by Coral, instead. We deployed PoseNet on the Edge TPU device, extracted body key points, and used an algorithm to estimate face bounding boxes according to the coordinates of the extracted key points. PoseNet inference speed for (1281, 721) input size was 18 FPS on a Coral USB accelerator attached to a tower server with an AMD Ryzen 9 3900X 12-Core Processor CPU.

“Mask / No Mask” Classifier

We used the OFMClassifier from part 1 for the “mask/ no mask” classification task. Keras, Edge TPU, and Jetson models are available for download on Galliot’s models’ library. We applied post-training quantization to the Keras model to export a .tflite file. Then, we compiled the TFLite model on the Edge TPU device. The OFMClassifier achieved 90% accuracy on the BaselineVal validation set (introduced in part 1) with 2170 FPS inference speed on a Coral USB accelerator attached to a tower server with an AMD Ryzen 9 3900X 12-Core Processor CPU.

3.2. Jetson Nano and Jetson TX2

Face Detector

None of the pre-existing face detectors and pose estimators deployable on Jetson platforms could accurately detect small faces in CCTV-like images. Therefore, we generated a TensorRT inference engine from an OpenPifPaf pose estimator model for deploying it on Jetson devices. We achieved a 3 FPS inference speed on a Jetson TX2 device. You can download this pose estimator for the Jetson TX2 device here. Support for the Jetson Nano device is coming soon. You can learn more about pose estimation on Jetson platforms in another blog by Galliot, available here.

“Mask / No Mask” Classifier

We generated a TensorRT inference engine from the OFMClassifier Keras model to deploy it on our Jetson device. To do so, we froze the Keras model and converted it to a TensorFlow .pb file. Then, we used the TensorFlow-ONNX tool to convert the .pb file to an ONNX model. Finally, we generated a TensorRT engine from the ONNX model on our Jetson device using the ONNX-TensorRT tool. You can find the OFMClassifier for Jetson Nano and Jetson TX2 here.

We achieved 90% accuracy on the BaselineVal validation set (introduced in part 1) with 219 and 216 PFS inference speed on Jetson TX2 and Jetson Nano, respectively.

4. Face Mask Detection application; how to use the source code?

Galliot’s open-source Face Mask Detection application is accessible on our GitHub repository. You can use this application in several modes by running each command inside Docker:

1. Run a Flask application with a web-GUI interface:

python inference_main_app.py --config configs/config-x86.json

2. Run inference on a single video and save the output in the specified path:

python inference_video.py --config configs/config-x86.json --input_video_path data/video/sample.mov --output_video data/videos/output.avi

3. Run inference on multiple images and save the output in the output image directory:

python inference_images.py --config configs/config-x86.json --input_image_dir data/images --output_image_dir output_images

4. Train the classifier on a custom dataset (currently supported on X86 platforms):

python model_main.py --config configs/config-86.json

Note that you should pass the correct config file according to the device you are using.

The Face Mask Detection application is scalable; you can add your own detector and classifier to the source code and use them instead of the default models. To do so, you should implement the model backbone in the facemask/models/backend.py module and add the network head to the facemask/models/frontend.py module. You will also need to add the classifier name to the model backend dictionary and load the backend for your model in the backend loader following this example.


You can change the application’s behavior in both inference and training steps by customizing the config file that matches your device. Config file examples for Jetson, Edge TPU, and X86 platforms are available in the application source code on GitHub. We describe config parameters for two common use cases to demonstrate how to customize the configurations. Feel free to experiment with different config parameters to explore more.

Transfer Learning

If you want to use a pre-trained model and apply transfer learning, you will need to make some changes to the config file under the modelsection:

  • Specify the classifier name using the backend parameter.
  • Set load_pretrained value to True.
  • Specify the address of the pre-trained weights using the pretrained_model parameter.

Train a Classifier on a Custom Dataset

If you want to train a classifier on a custom dataset, under the train section:

  • Set the train_image_folder parameter to the training images folder path.
  • Specify the directory where you want to save training checkpoints, output model, and TensorBoard logs via the saved_weights_folder parameter.

Note that the structure of the dataset you are using should match this:

# 	|_train/
# 		|_face
# 			|_face1.jpg
# 			|_face2.jpg
# 		|_face-mask
#      			|_face-mask1.jpg
#      			|_face-mask2.jpg

# 	|_validation/
# 		|_face
# 			|_face1.jpg
# 			|_face2.jpg
# 		|_face-mask
# 			|_face-mask1.jpg
# 			|_face-mask2.jpg

5. Conclusion

In this article, we explained the challenge of detecting small faces in real-world, CCTV-like data. We explored different face detection algorithms, such as SSD MobileNet, Pose estimation, and Tiny face detector, and mentioned the use cases for each face detector. Next, we explained how we deployed Galliot’s Face Mask Detector application on Edge TPU and Jetson devices. Finally, we gave a brief overview of the customizable configurations in the source code.
Galliot’s face mask detection models are available for download on our GitHub repo. Select and download the model according to the platform you are using:

Please refer to Galliot’s Face Mask Detector application source code for implementation details.


This project is sponsored by Lanthorn. Visit Lanthorn.ai to learn more about our AI solutions.
All released datasets (Extended Synthetic dataset, Galliot FaceMask50K dataset), released models, and Galliot’s GitHub source code are licensed under Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
